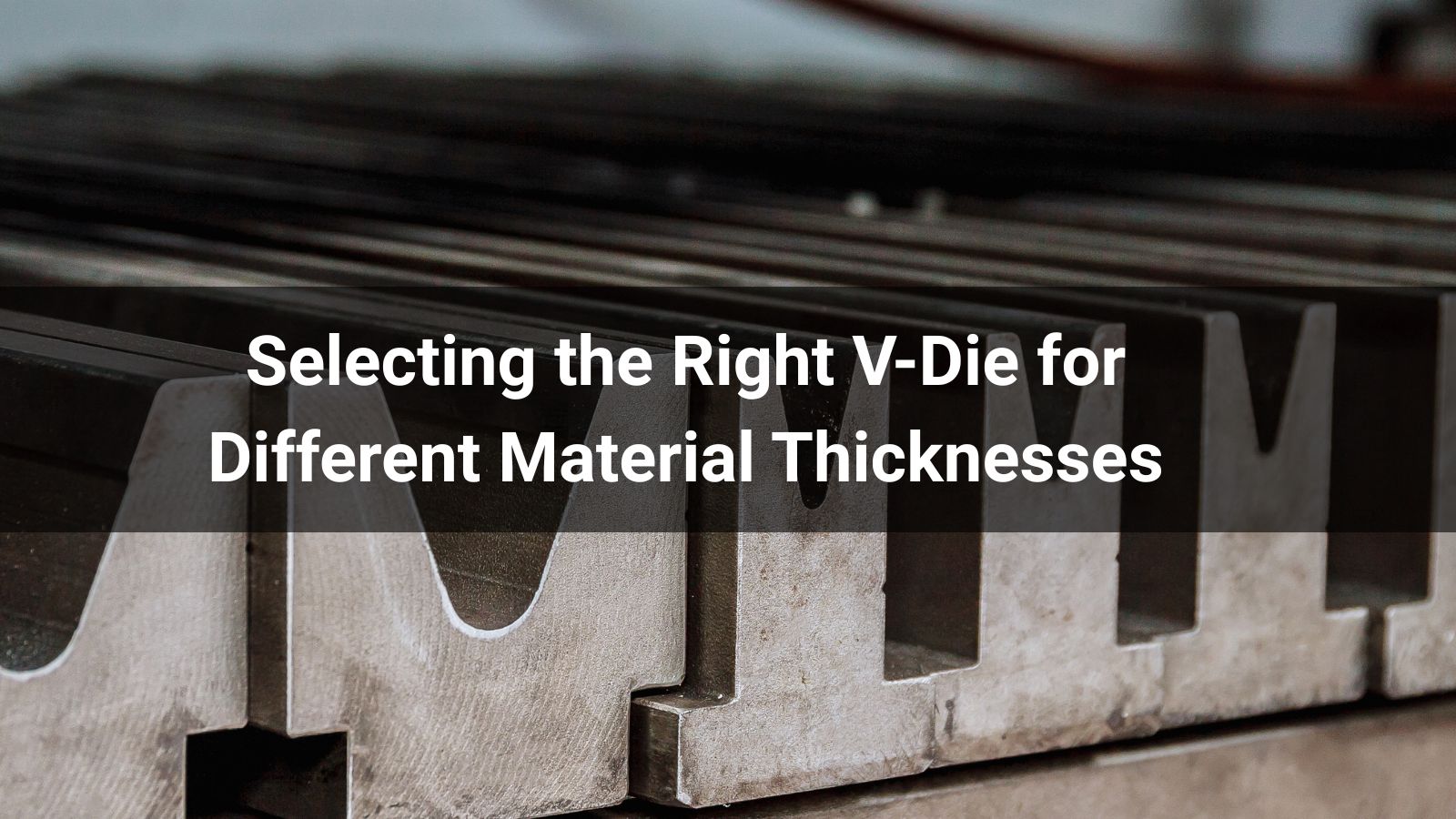

Selecting the Right V-Die for Different Material Thicknesses | Bending Guide

Updated on May 20 ,2026

Why Is V-Die Selection Make-or-Break for Press Brake Bending Success?

Have you ever spent hours troubleshooting press brake issues—only to find parts with warped bend angles, deep surface marks on finished sheet metal, or your machine maxing out tonnage for simple bends? Or watched your V-dies wear out months ahead of schedule, driving up maintenance costs and production downtime? For metal fabricators, these aren’t random headaches—they’re direct consequences of choosing the wrong V-die for your material thickness.

In press brake bending operations, tooling selection defines part quality, dimensional accuracy, and production efficiency. Among all tooling components, the V-die is the most critical. An ill-fitted V-die doesn’t just ruin parts—it risks machine safety, shortens tool lifespan, and drains operational profits. Selecting the right V-die isn’t guesswork or habit; it’s a data-driven technical decision that fixes bending pain points and elevates your entire workflow. This expert guide breaks down V-die mechanics, material thickness matching rules, and real-world selection strategies to eliminate costly bending mistakes.

What Exactly Is a V-Die, and How Does It Power Press Brake Bending?

A V-die is the foundational lower die in press brake bending, engineered with a precision V-shaped opening that supports sheet metal while the upper punch delivers downward force. Together, the punch and V-die control every critical bending output: bend angle, inside bend radius, and controlled material flow. You can explore more professional press brake tooling knowledge via press brake tools introduction.

Core Structure of a Standard V-Die

• Hardened steel body for maximum durability under high bending pressure
• Precision-machined V-shaped opening for consistent bend geometry
• Ground contact surfaces to stabilize sheet metal and eliminate slippage

V-Die Function Across 3 Key Bending Methods

The V-die’s role shifts based on your bending technique—directly impacting selection choices:

• Air Bending (Most Common): Material does not bottom out in the V-die; bend angle is controlled by punch depth and V opening size (the focus of this guide for high-efficiency production).
• Bottom Bending: Material is pressed near the V-die base, requiring higher tonnage and tighter tool tolerances.
• Coining: Material is fully compressed into the V-die for ultra-precise angles, demanding extreme force and heavy-duty tooling.

Decoding V-Die Sizes (V6, V8, V12, V16 & Beyond)

V-die sizing is simple but non-negotiable: the number refers to the width of the V opening in millimeters. For example:

• V6 = 6mm V opening
• V8 = 8mm V opening
• V12 = 12mm V opening

This measurement is the single most important parameter for matching your V-die to material thickness. View complete specifications of various specifications dies at press brake V dies page.

How Do You Match Material Thickness to the Correct V-Die? The Golden 8× Rule

For air bending—the industry standard for efficient, high-quality fabrication—there’s a proven, universal guideline to eliminate V-die guesswork: the 8× Rule.

Rule Formula: Optimal V-die opening = 6–12 times the material thickness (8x is the industry sweet spot)

This rule balances bending force, part accuracy, and tool life perfectly: smaller V-openings boost precision but spike tonnage, while larger openings reduce force but create wider bend radii. Refer to press brake bending standard guide for more industry specification references.

Real-World 8× Rule Examples for Instant Reference

• 1mm thick material → V8 (8x thickness)
• 2mm thick material → V16 (8x thickness)
• 3mm thick material → V24 (8x thickness)
• 4mm thick material → V32 (8x thickness)

Does Material Type Change V-Die Selection? (Critical Adjustments for Steel, Stainless Steel & Aluminum)

Material thickness is foundational—but material type dictates final V-die adjustments. Ignoring this leads to springback, surface damage, or inconsistent bends:

• Carbon Steel: Follows the standard 6–10× guideline; 8× V-openings deliver ideal precision and low tool stress for mild steel.
• Stainless Steel: Harder with extreme springback—use a larger V-opening to reduce tool load, minimize surface marking, and improve bend consistency.
• Aluminum: Soft and ductile—use a slightly smaller V-opening for tighter bend radii; add surface protection to avoid cosmetic marks.

How Do Bend Radius & Angle Impact V-Die Choice?

Your part’s specified inside bend radius is non-negotiable—and the V-die opening directly controls it:

• Larger V-openings = larger inside bend radii
• Smaller V-openings = tighter, sharper radii (but require far more bending tonnage)

Fabricators often make the mistake of nailing the bend angle but missing the radius—all because they skipped V-die-radius matching. Always cross-reference your part’s radius spec with V-die size before production. Learn more bending parameter matching skills from punch and die matching tutorial.

Quick Reference: Recommended V-Die Sizes for Common Material Thicknesses (Air Bending)

Save this table for daily production—your go-to cheat sheet for error-free V-die selection:

Note: Adjust for material type, bend length, and your press brake’s tonnage capacity for custom applications.

What Happens When You Choose the Wrong V-Die? Real Fabrication Nightmares

Let’s use real shop floor scenarios to highlight the cost of poor V-die selection:

• Inaccurate Bend Angles: A fabricator used a V8 for 4mm steel—uncontrolled springback made 90° bends read 95°, scrapping 50+ finished enclosure parts.
• Surface Defects: A small V-opening concentrated pressure on decorative aluminum, leaving permanent indentations that ruined customer orders.
• Material Cracking: Sharp bends with an undersized V-die caused 3mm stainless steel to crack along bend lines, requiring full rework.
• Excessive Tonnage: An undersized V-die pushed a 50-ton press brake to its limit, damaging the hydraulic system and causing 2 days of downtime.
• Premature Tool Wear: Consistent overloading wore out V-dies in 3 months instead of the standard 12+, doubling tooling costs.

Pro Tips: How to Select the Right V-Die in Seconds (Daily Production Hacks)

• Always check your press brake’s tonnage limit before choosing small V-openings
• Prioritize part quality requirements over habitual tool selection
• Use multi-V dies for high-mix, low-volume production to cut setup time, view details: Multi-V combined dies
• Standardize top V-opening sizes for batch production to reduce errors
• Use protective-insert V-dies for soft or decorative materials
• Test bend with sample material before full production for complex parts

Shinite Tool’s V-Die Solutions: Engineered for Perfect Material Thickness Matching

Shinite Tool designs V-dies to solve your biggest bending challenges, with solutions tailored to every material thickness and application. As a professional manufacturer with complete qualification certification, we strictly follow production standards, you can check all qualification certificates at company certificates page:

• Standard V-dies covering all common sheet metal thickness ranges
• Multi-V dies for flexible, high-efficiency tool setups
• Custom V-openings engineered to your part drawings and material specs
• High-strength alloy steel construction for maximum tool life
• Precision-ground surfaces for consistent, repeatable bending accuracy

Our team provides free, expert V-die selection guidance to match your material thickness, bend geometry, and press brake capacity perfectly. We serve sheet metal fabrication, enclosure manufacturing, automotive components, and architectural metalwork industries worldwide. Know more about our factory strength and production flow via production process and company overview. For customized tooling consultation, please contact us directly.

Conclusion: V-Die Selection Is Your Strategic Investment in Fabrication Success

Choosing the right V-die for your material thickness isn’t just a technical task—it’s a strategic investment in consistent quality, reduced waste, extended tool life, and maximum production efficiency. By mastering V-die fundamentals, applying the 8× rule, and adjusting for material-specific behavior, you eliminate costly bending mistakes and streamline operations.

With Shinite Tool’s full range of standard and custom V-die solutions, you have the expertise and tooling to optimize every press brake bend, no matter the material or thickness. Browse full product lineup on our official homepage: Shiniteknife Official Site.

Stop letting poor V-die selection slow down your production—make the right choice every single time.
